Sensor - Vane AFM

The Vane AFM means Vane Air Flow Meter show as below

Test vane angle and voltage out
When vane angle is 0 degree

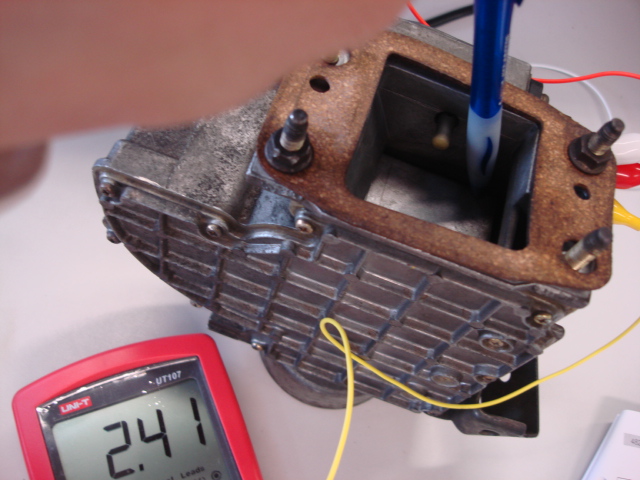

When vane angle is 30 degree
When vane angle is 45 degree
When vane angle is 75 degree

When vane angle is 90 degree

Vane Angle and Voltage Out

Vane AngleVoltage Out
03.81V
302.41V
451.37V
750.8V
900.35V


The graph
The specification of the AFM
  My results are within the manufacture's specifications. When the measuring plate opening, the voltage output increase.

Explain internal operation and why your voltage changes.
The circuit of it show as below
When the opening angle of the measuring plate changes, the resistance of Vs-Vb changes. E2 is ground,so the available voltage of Vs as the voltage output signal changes. Opening angle increased, rssistance between Vs and E2 increase, so voltage output increased.
