1. I took CIC32R and CIC31 ignition coils.
2. Coil Specifications
Coil | CIC32R | CIC31 |
Voltage | 12V | 12V |
Primary |
| 3.0 to 4.0R |
Secondary |
| 7 to 8KR |
3. Check the meter error and deduct that value off your final reading.
4. Obtain a multimeter.
5. Turn the meter rotary switch to the 200 ohm position. touch the positive and negative leads together and note your default error.
|
The resistance of multimeter is 0.2R |
6. Carry out tests and record your findings
|
Primary coil testing |
|
Secondary coil testing |
Coil | Primary | Secondary | Earth Leakage |
CIC32R | 1.6-0.2=1.4R | 8.99KR | OL |
|
Primary coil testing |
|
Secondary coil testing |
Coil | Primary | Secondary | Earth Leakage |
CIC31 | 3.1-0.2=2.9R | 9.63KR | OL |
Both two coils are serviceable.
Wasted Spark Coil Pack
In wasted spark coil pack, the primary and secondary coils are not connected, and primary coil of cylinder 1,4 and cylinder 2,3 shared one terminals.
|
wasted spark coil circuit for 6 cylinders. |
Test the 4 cylinder wasted spark coil pack.
Wasted Spark Coil No 1
|
Two primary coil shared terminals |
|
The total resistance of 2 primary coils |
|
Primary coil 1 |
|
Primary coil 2 |
|
Secondary coil 1 |
|
Secondary coil 2 |
| Primary coil 1 | Primary coil 2 | Secondary
coil 1 | Secondary
coil 2 |

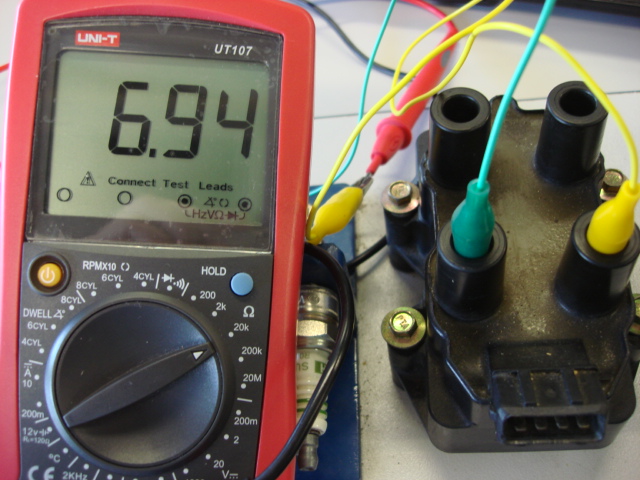

Resistance | 0.7-0.2=0.5R | 0.7-0.2=0.5R | 6.94KR | 6.94KR |
Wasted Spark Coil No 2
|
Two primary coil shared terminals |
|
The total resistance of 2 primary coils |
|
Primary coil 1 |
|
Primary coil 2 |
|
Secondary coil 1 |
|
Secondary coil 2 |
| Primary coil 1 | Premary coil 2 | Secondary coil 1 | Senondary coil 2 |
Resistance | 0.7-0.2=0.5R | 0.7-0.2=0.5R | 7.07KR | 7.26KR |
